ICBM (Inter Continental Ballistic Missile)
Nama
Mulai Digunakan
Jangkauan (Km)
Jumlah Total
Hulu Ledak (Kt)
Keterangan
This is a MIRV (Multiple-
Here a list of all Russian Nuclear InterContinental Ballistic Missle launch sites, which I managed to find. It includes launch silos and hangars for the mobile launchers. Some of them are at hi resolution.
All currently active and some recently closed divisions at 11.2006.
All information was taken from a open sourses:
http://www.fas.org/nuke/guide/russia/facility/icbm/index.html,
http://russianforces.org,
http://rbase.new-factoria.ru,
and does not contain any military or state secret.
(Last update 5 February, 2007)
Intercontinental Ballistic & Cruise Missiles
Intercontinental Ballistic Missiles | ||||||
|---|---|---|---|---|---|---|
| Russian Designations | Bilateral [START] | Western Designations | ||||
| Missile Designer | System Ministry | System Operator | DIA | NATO | ||
| R-7 | 8K71, 8K74 | SS- 6 | SAPWOOD | |||
| R-9 | 8K75 | Desna | SS- 8 | SASIN | ||
| GR-1 | 8K713 | SS-10 | SCRAG | |||
| R-16 | 8K64 | SS- 7 | SADDLER | |||
| R-26 | 8K66 | |||||
| R-36 | 8K67 | SS- 9 | SCARP | |||
| R-36O | 11K69 | SL-X-? | FOBS | |||
| R-36M | 15A18 | Voivode | RS-20 | SS-18 | SATAN | |
| R-46 | 8K68 | [none] | ||||
| UR-100 | 8K84 | RS-10 | SS-11 | SEGO | ||
| UR-100MR | 15A15 | Sotka | RS-16 | SS-17 | SPANKER | |
| UR-100N | 15A30 | RS-18 | SS-19 | STILLETO | ||
| UR-200 | 8K81 | SS-10 | [none] | |||
| UR-500 | 8K82 | SL- 9 | PROTON | |||
| RT-1 | 8K95 | [none] | ||||
| RT-2 | 8K98 | RS-12 | SS-13 | SAVAGE | ||
| RT-20P | 8K99 | SS-15 | SCROOGE | |||
| RT-21 | 15Zh42 | Temp-2S | RS-14 | SS-16 | SINNER | |
| RT-2PM | 15Zh62 | Topol | RS-12M | SS-25 | SICKLE | |
| RT-2UTTH | 15Zh? | Topol-M | RS-12MR?? | SS-27 | ?? | |
| RT-23 | 15Zh60 | Molodets | RS-22 | SS-24 | SCALPEL | |
| RSS-40 | Kuryer | RSS-40 | ||||
Intercontinental Cruise Missiles | ||||||
|---|---|---|---|---|---|---|
| Russian Designations | Bilateral [START] | Western Designations | ||||
| Missile Designer | System Ministry | System Operator | DIA | NATO | ||
| RSS-40 | Buran | [none] | [none] | |||
| La-350 | Burya | [none] | [none] | |||
LGM-30G
Minuteman III MK12 1970 13,000 150 170 150 hulu ledak aktif
Hulu ledak aktif type W62
LGM-30G
Minuteman III MK12 (MIRV) 1970 13,000 50 170x3
MIRV 150 hulu ledak aktif dan 15 cadangan
Hulu ledak aktif type W62 akan diganti dengan hulu ledak tunggal pada thn 2007
LGM-30G Minuteman III MK12A 1979 11,300 300 335x3
MIRV 750 hulu ledak aktif dan 30 cadangan
Hulu ledak type W78 akan diganti dengan hulu ledak tunggal thn 2007

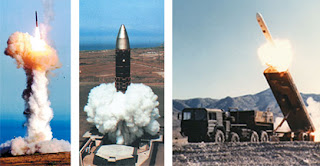

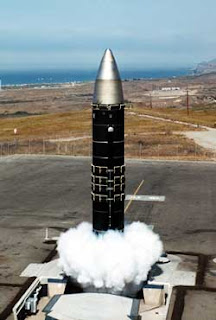

LGM-118MX
Peacekeeper 1986 9,600-11,000 10 300x3
MIRV 100 hulu ledak aktif
Hulu ledak type W87. Type ini ditarik Oktober 2005
Berdasarkan data diatas, Amerika Serikat sampai saat data ini dicatat (2005) memiliki kurang lebih 510 Rudal Balistik dengan total sekitar 1100 hulu ledak aktif (war head) dan 45 hulu ledak cadangan dengan jarak jangkau antara 9,600km hingga 13,000km.
Peluru Kendali Kapal Selam/Kapal Laut
SLBM (Submarines Launched Ballistic Missile)
FBM (Fleet Ballistic Missile)
Ohio-class (USA): New Summary Video! (11.6 MB, WMV)
the boats [18 built]
Was 8 C-4's (Pacific) and 10 D-5's (Atlantic), but now the C-4's are being converted. Four will go to the D-5 configuration, but the other four will serve other special missions as SSGN's (1) (2) (3) (4) -- technology demonstrators to deploy SEALs, fire Tomahawks, and other such systems so that they may be incorporated into batch 2 of the NSSN's [see lower section].
Upon completion of the four C-4 boat conversions to the D-5 configuration, the new total of 14 D-5 SSBN's will be redistributed between the two oceans (most likely 7 x 7).
| |||
submarine evolution to the Ohio
| Ohio cutaway
| Ohio missile launch cartoon
| stealthy Ohio props probably look similar to this Sturgeon-class prop
|

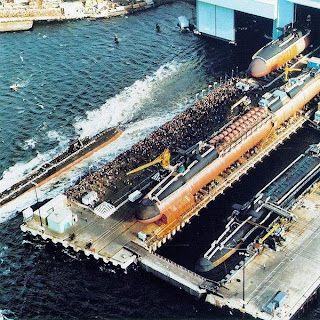

under construction
| under construction
| under construction
| the launch of SSBN 728
|
| driving something big
| driving something big
| damn that's a big boat
| you on the boat
|
returning home
| them tiny guys is da crew
| driving something big
| not desirable duty
|
enlarged pic, crew on boat, #1...
| ... #2.
| in Seattle: on Puget Sound...
...and Hood's Canal.
| through Hood's Canal Bridge, WA, on the way to Bangor
|
loading torpedoes
| loading torpedoes
| torpedo tube inspection
| special missions: SEALs deploy underwater
|
accident training: flooding
| accident training: fire, crew at stations
| are these things big or what?
| text information... |
| missile tubes (24 per boat) | |||
missile tubes open, empty
| missile tubes open, full
| missile tubes open, close-up
| missile tubes open, under way
|
| the missiles (SLBMs): Trident I C-4 (UGM-96) and Trident II D-5 (UGM-133) [Tridents carry ~1/2 of the U.S. nuclear arsenal, by number of warheads; more info, C-4... more info, D-5...] | |||
C-4 exploded view
| C-4 flight profile (Note: actual C-4 range is 4000 nm, not the 2500 nm stated here -- that was the range for the C-3 Poseidon; D-5 range is 4000-6000 nm)
| C-4 to D-5 comparison
| D-5 exploded view
|
The D-5 and C-4 side by side
| how the aerospike works
| ground handling / testing
| loading a C-4 at port (Bangor, WA)
|
loading a C-4 at sea
| loading a C-4 at sea
|
a way-too-detailed installation drawing of a Trident II missile loaded in an Ohio silo: small (205 kB), big (1.11 MB)
(government auditor, I found this in the public domain at http://www.fortunepaint.com/trident_line_art.htm on January 14, 2002; see WHOIS info below for them)
Registrar: MELBOURNE IT, LTD. D/B/A INTERNET NAMES WORLDWIDE; Organization: Fortune Painting; Address: 4170 Golf Drive _ San Jose, 95127 CA UNITED STATES; Admin contact: Robert Fortune; E-mail: aerocon@FORTUNEPAINT.COM, bob@fortunenet.com; Phone: 408 2727001; Tech contact: VERIO VERIO; E-mail: hostmaster@VERIO-HOSTING.COM; Phone: 888 6636648; Nameservers: ns1.best.com, ns2.best.com, ns3.best.com
| |
0: T = 0
| 1: dome penetration
| 2: underwater ascent
| 3: coast to apogee, fire
|
Launch sequences 0 thru 3 (Windows WMV movie, 1.2 MB) | powered flight begins
|
A dual Trident underwater launch (MPEG movie, 4.0 MB) | oops! a really bad launch on initial D-5 testing
|
MIRVs hitting targets
| the evolution of Fleet Ballistic Missiles
| missiles-in-boat-silos evolution, A-1 to D-5
| (seen with all other nuclear missile programs) |
START compliance has implemented Trident de-rating (fewer warheads per missile)
| |||
| the Re-Entry Vehicles / Bodies & Warheads: W76 and Mk-4 [3200 in inventory, 100 kiloton yield ea.], or W88 and Mk-5 [400 built, 475 kiloton yield ea.] | |||
| the operation of a modern nuclear warhead & RV (W87 Peacekeeper MX ICBM shown)
| warheads in the vehicle assembly process (W87 Peacekeeper MX ICBM shown)
| W76 neutron generators being dessicated in support of today's W76 upgrade program to near-W88 lethality
| the MC2912 arming, fuzing, and firing system for the W76 & Mk-4
|
a single W76 or W88 in action (eight W76's per missile or five* W88's per missile [*could carry 8 but...])
| the W88 & Mk-5 package
| *Why W88 production was halted at 400 units instead of 4,000 - 5,000 units How the W76's are being upgraded to W88 lethality against hardened targets | Next-generation warheads beyond W76 & W88 for Trident missiles (1) (2) (3) (complaints about) |
| a 500 kiloton nuclear explosion (Ivy KING air-drop Super-Oralloy all-fission bomb) (Quicktime Movie, 3.0 MB) | |||
Typhoon-class (Russia): [6 built]
| watta tub
| el colde loco
| two giants at dock
| missile tubes open
|
| under way
| in drydock
| double-thermal undies for deck hands
| text information... |
| great high-res shot...
|
favorite Attack Boats
Seawolf-class (USA): [3 built]
| good surface pic
| sub drivers
| sub drivers
| more on top
|
| torpedo firing
| crew at stations
|
| text information... |
Virginia / NSSN-class (USA): [still in development and initial production]
Funding overview
| Stealth overview
| in water w/pointers
| at sea
|
misc. facts and cutaway view (big)
|
|
|
Los Angeles / SSN-class (USA): [62 built; 39 688's, 23 688i's]
Los Angeles-class cutaway
| in production
| launch ceremony
| launch ceremony
|
in drydock
| riding high
| boat drivin'
| boat drivin'
|
great tub driver shot
| over the shoulder
| good bow penetration shot
| quite the wake
|
conning tower boys
| resupply visit
| mail drop at sea
| killing time up topside
|
not hidden too well
| "angles and dangles" emergency surface
(AVI movie, 2.0 MB) |
underwater Tomahawk launch, view through periscope...
| ...view from chopper nearby
|
|
|
SLBM (Submarines Launched Ballistic Missile)
Nama
Mulai Digunakan
Jangkauan (Km)
Jumlah Total
Hulu Ledak (Kt)
Keterangan
UGM-96A
Trident I C-4 1979 7,400 40 100x6
MIRV 288 hulu ledak aktif
Trident II D-5 menggantikan Trident I C-4 pada tahun 2006
UGM-133A
Trident II D-5 MK4 1992 12,000 288 100x8
MIRV 1,344 hulu ledak aktif dan 150 cadangan
Jumlah Trident II D-5 adalah 288 unit, sedangkan angka pasti jumlah Trident II D-5 MK4 yang dirubah menjadi type MK5 tidak diketahui
UGM 133A
Trident II D-5
MK5 1990 12,000 288 455x6
MIRV 384 hulu ledak aktif dan 20 cadangan
Hulu ledak type W78
Berdasarkan data diatas, Amerika Serikat sampai saat data ini dicatat (2005) memiliki kurang lebih 328 Rudal Balistik yang dapat diluncurkan dari kapal selam atau kapal perang dengan total sekitar 3014 hulu ledak aktif (war head) dan 170 hulu ledak cadangan dengan jarak jangkau 7,400km hingga 12,000km (dari posisi kapal selam/kapal perang) yang menggusung rudal tersebut.
Selain persenjataan peluru kendali balistik, Amerika Serikat juga memiliki jenis persenjataan nuklir lain seperti bom nuklir, peluru kendali yang diluncurkan dari laut (SLCM: Sea-Launched Cruised Missile) dan peluru kendali penjelajah yang diluncurkan dari udara (ALCM: Air-Launched Cruised Missile)
Bom nuklir, rudal jelajah dari laut dan rudal jelajah dari udara
Nuclear Bomb
SLCM (Sea Launched Cruised Missile)
ALCM (Air Launched Cruised Missile)
Nuclear Bomb, SLCM dan ALCM
Nama
Mulai Digunakan
Jangkauan (Km)
Jumlah Total
Hulu Ledak (Kt)
Keterangan
B61 Mod-7 1967 classifieds 750 10 - 500 Bom nuklir yang mengandalkan gravitasi dan diusung oleh pesawat pembom B-2A Spirit
B61 Mod-11 1997 classifieds classifieds 0,3 - 180 Bom nuklir yang mengandalkan gravitasi dengan kemampuan daya tembus tinggi dan diusung oleh pesawat pembom B-2A Spirit
B83 1984 2,500
650
1,000 - 2,000 Bom nuklir yang mengandalkan gravitasi dan diusung oleh pesawat pembom B-2A Spirit
BGM-109A
Tomahawk 1984 2,500 325 200 SLCM dengan hulu ledak aktif type W80-0 yang dapat diusung oleh kapal selam kelas Los Angeles dan kapal perang
AGM-86B 1982 2,500 950 200 ALCM dengan hulu ledak aktif type W80-1 yang dapat diusung oleh pesawat pembom B-52H Stratofortress
AGM-129A
ACM 1991 3,000 460 200 ALCM dengan hulu ledak type W80-1 yang dapat diusung oleh pesawat pembom B-52H
Stratofortress
Selain memiliki peluru kendali balistik jarak jauh yang dapat diluncurkan dari dataran Amerika maupun armada kapal selam maupun kapal laut, Amerika Serikat juga memiliki peluru kendali balistik yang dapat diluncurkan dari pesawat pembom.
Pesawat Pengangkut Peluru Kendali Jelajah Udara
Aircraft Bomber (pesawat pembom)
Supersonic Aircraft Bomber( Convair XB-58 Hustler )
Pesawat
Mulai Digunakan
Jangkauan (Km)
Jumlah Total
Hulu Ledak (Kt)
Keterangan
B-52H
Stratofortress 1961 16,000 94 20
ALCM
atau
ACM -
B-2A
Spirit 1993 12,000 20 16 B61 Mod
7 B61 Mod 11
atau
Bom B83 -
Berdasarkan data diatas, Amerika Serikat memiliki 114 Pesawat pembom jarak jauh yang mampu terbang sejauh 12,000km hingga 16,000km dan mengangkut 7 hingga 20 peluru kendali jelajah udara.
Kapal Selam Pengangkut Peluru Kendali Jarak Jauh
Submarines (kapal selam)
Kapal Selam
Mulai Digunakan
Jumlah Total
Hulu Ledak (Kt)
Keterangan
Ohio
Class 1981 14
(10 masih dalam pembuatan) 24 UGM 96A
Trident I C-4
atau
UGM 133A
Trident II D-5 -
Berdasarkan data diatas, Amerika Serikat memiliki 14 (atau nantinya 24) kapal selam nuklir pengangkut peluru kendali balistik.
